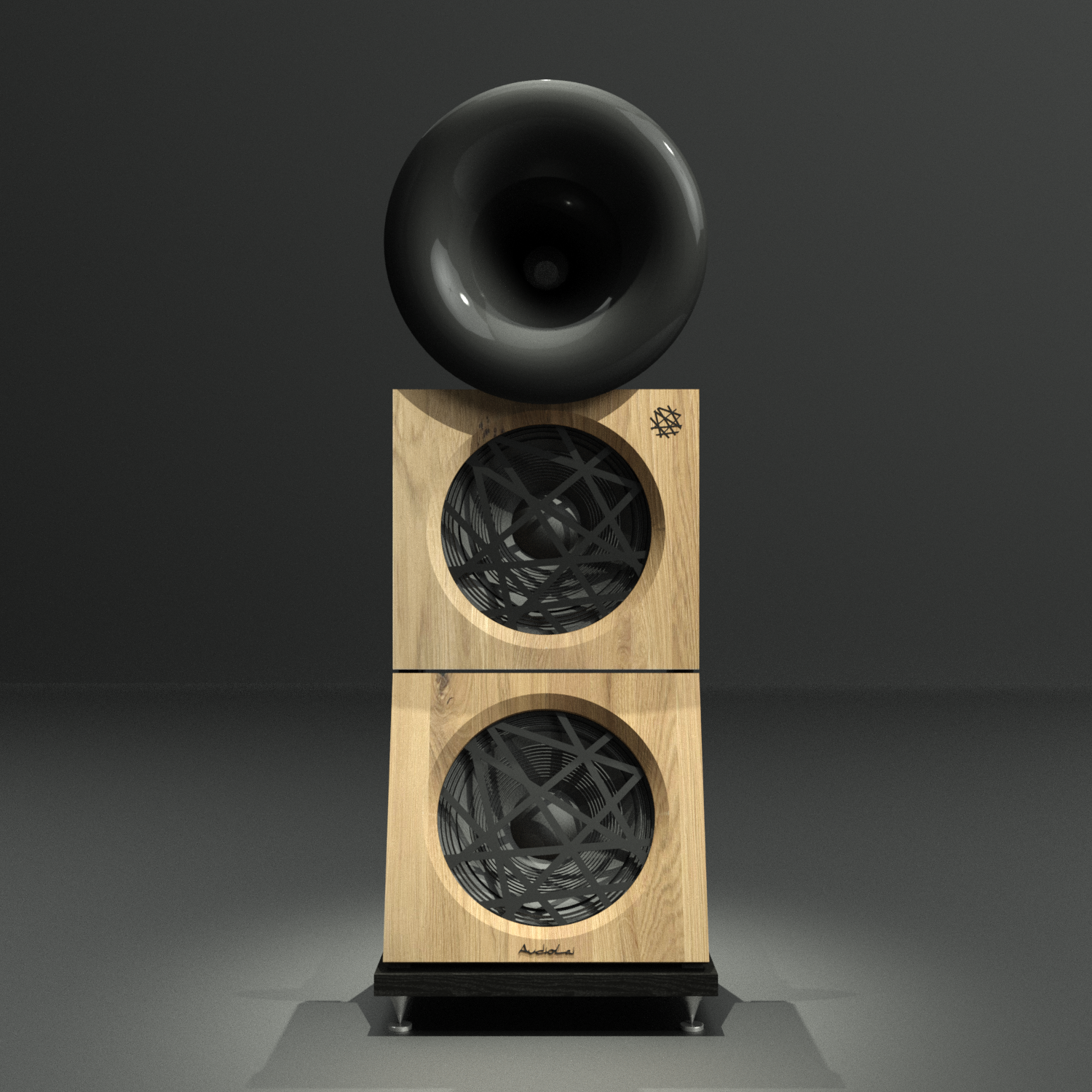

DUETTO Active - Oak

Connections:

• Analogue XLR
• Analogue RCA
• S/PDIF
• AES/EBU
• Toslink


Each loudspeaker system is carefully managed by an advanced digital signal processor (DSP), which meticulously oversees the filtration, time alignment, and phase coherence of every amplifier channel, ensuring that each corresponding transducer operates at optimal performance. This approach allows for highly accurate and dynamic audio reproduction.

One of the key innovations of this design is the complete elimination of passive crossover components, a decision made possible through the deliberate and precise optimization of the acoustic elements. The horn and compression driver, as well as the dipole-loaded woofers, have been specifically engineered and tuned with digital processing in mind. This comprehensive integration from the earliest stages of development enables the system to leverage the full potential of DSP technology, resulting in improved control, enhanced clarity, and superior overall sound fidelity compared to traditional loudspeaker configurations.

Components:
1 x 1.4” Compression driver with a 420mm exponential horn
2 x 12” Paper woofers, dipole-loaded

Amplification:
Hypex nCore
1 x 100w HF
1 x 250w LF

Processor:
Hypex DSP

Frequency response:
35Hz-20kHz

Phase:
Linear

Harmonic distortion:
2nd-3rd harmonics,<0.5%

Sensitivity:
103db

Control interface:
IR Remote + USB

Power Receptor:
C13 IEC 120-240V

Dimensions:
W430mm
D390mm
H1225mm
